Fractal behaviour of microseismic energy associated with mining-induced tremors

 2020

 Volume 23, Issue 3

Penghong Fan1,2,3, Baisheng Nie2,3, and Tao Yang4

1Shanxi Institute of Technology, Department of Mining Engineering, 045000, Shanxi, China

2China University of Mining & Technology (Beijing), School of Emergency Management and Safety Engineering, 100083, Beijing, China

3China University of Mining & Technology (Beijing), State Key Laboratory of Coal Resources and Safe Mining, 100083, Beijing, China

4North China Institute of Science and Technology, School of Safety Engineering, 065201, Hebei, China

Received: March 06, 2020
Accepted: May 12, 2020
Publication Date: May 10, 2026

上傳圖片

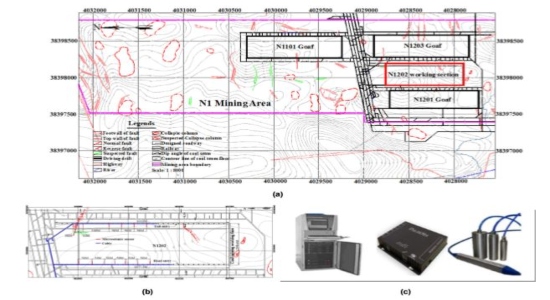

(a) Underground N1 mining area in Yuwu coal mine, in Shanxi Province of China. (b) Monitored island workface of coal (N1202) and layout of microseismic monitoring system. (c) Microseismic monitoring system: primary server, data collection substation and microseismic sensors.

 Copyright The Author(s). This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are cited.

Download Citation:  BibTeX | http://dx.doi.org/10.6180/jase.202009_23(3).0013

Download PDF

According to the real-time monitoring data from N1202 island workface of Yuwu coal mine, in Shanxi Province of China, the microseismicity is studied during the actual mining process in the field, the moment magnitude and energy distribution of microseismic events are obtained, the source locations of mining tremors caused by 3 large magnitude microseismic events are determined, and the moment magnitude and energy are calculated. Based on fractal and chaos theory, the mutual information method is introduced to compute the delay time of time series of microseismic energy, the G-P algorithm is introduced to calculate the fractal dimensions of mining tremors with different energy, which is in a declining trend and the lowest on the day of mining tremors. The moment magnitude, energy and fractal behavior of energy under different mining tremors will provide a valuable reference to the early warning of mine dynamic disaster.

Keywords: Mining-induced tremors; Microseismic energy; fractal behavior; Island workface; coal and rock dynamic disasters

  1. [1] Andrzej Kijko and SJ Gibowicz. An Introduction to Mining Seismology. Technical report, 1994.
  2. [2] R. P. Young and D. S. Collins. Seismic studies of rock fracture at the underground research laboratory, Canada. International Journal of Rock Mechanics and Mining Sciences, 38(6):787–799, 2001.
  3. [3] Debjeet Mondal, P. N.S. Roy, and Manoj Kumar. Monitoring the strata behavior in the Destressed Zone of a shallow Indian longwall panel with hard sandstone cover using Mine-Microseismicity and Borehole Televiewer data. Engineering Geology, 271, 2020.
  4. [4] Nan Li, Bingxiang Huang, Xin Zhang, Tan Yuyang, and Baolin Li. Characteristics of microseismic waveforms induced by hydraulic fracturing in coal seam for coal rock dynamic disasters prevention. Safety Science, 115:188–198, 2019.
  5. [5] Li Yuan-hui, Lei Gang, Xu Shi-da, and Wu Da-wei. The spatial-temporal evolution law of microseismic activities in the failure process of deep rock masses. Journal of Applied Geophysics, 154:1–10, 2018.
  6. [6] Morgen R. Leake, William J. Conrad, Erik C. Westman, Setareh Ghaychi Afrouz, and Ryan J. Molka. Microseismic monitoring and analysis of induced seismicity source mechanisms in a retreating room and pillar coal mine in the Eastern United States. Underground Space (China), 2(2):115–124, 2017.
  7. [7] F G Hill, N G W Cook, E Hoek, Pretoriu.Jp, W D Ortlepp, and M D G Salamon. Rock Mechanics Applied to Study of Rockbursts. Journal of the South African Institute of Mining and Metallurgy, 66(10):435–&, 1966.
  8. [8] Mohammadali Sepehri, Derek B. Apel, Samer Adeeb, Paul Leveille, and Robert A. Hall. Evaluation of mininginduced energy and rockburst prediction at a diamond mine in Canada using a full 3D elastoplastic finite element model. Engineering Geology, 266, 2020.
  9. [9] Y. Fujii, Y. Ishijima, and G. Deguchi. Prediction of coal face rockbursts and microseismicity in deep longwall coal mining. International Journal of Rock Mechanics and Mining Sciences, 34(1):85–96, jan 1997.
  10. [10] AJ Mendecki. Seismic Monitoring in Mines. 1996.
  11. [11] G. Senfaute, C. Chambon, P. Bigarré, Y. Guise, and J. P. Josien. Spatial distribution of mining tremors and the relationship to rockburst hazard. Pure and Applied Geophysics, 150(3-4):451–459, dec 1997.
  12. [12] Krystyna Stec. Characteristics of seismic activity of the Upper Silesian Coal Basin in Poland. Geophysical Journal International, 168(2):757–768, feb 2007.
  13. [13] Simone Cesca, Ali Tolga ¸Sen, and Torsten Dahm. Seismicity monitoring by cluster analysis of moment tensors. Geophysical Journal International, 196(3):1813–1826, 2014.
  14. [14] Ali Tolga Sen, Simone Cesca, Monika Bischoff, Thomas Meier, and Torsten Dahm. Automated full moment tensor inversion of coal mining-induced seismicity. Geophysical Journal International, 195(2):1267–1281, 2013.
  15. [15] Mingwei Zhang, Hideki Shimada, Takashi Sasaoka, Kikuo Matsui, and Linming Dou. Seismic energy distribution and hazard assessment in underground coal mines using statistical energy analysis. International Journal of Rock Mechanics and Mining Sciences, 64:192–200, dec 2013.
  16. [16] Fei Liu, Tianhui Ma, Chun’an Tang, and Feng Chen. Prediction of rockburst in tunnels at the Jinping II hydropower station using microseismic monitoring technique. Tunnelling and Underground Space Technology, 81:480–493, 2018.
  17. [17] Debjeet Mondal and P. N.S. Roy. Fractal and seismic b-value study during dynamic roof displacements (roof fall and surface blasting) for enhancing safety in the longwall coal mines. Engineering Geology, 253:184–204, 2019.
  18. [18] Chunchi Ma, Tianbin Li, and Hang Zhang. Microseismic and precursor analysis of high-stress hazards in tunnels: A case comparison of rockburst and fall of ground. Engineering Geology, 265, feb 2020.
  19. [19] J Kinscher, P Bernard, I. Contrucci, A. Mangeney, J. P. Piguet, and P. Bigarre. Location of microseismic swarms induced by salt solution mining. Geophysical Journal International, 200(1):337–362, 2015.
  20. [20] Rolph Schwarzenberger and Kenneth Falconer. Fractal Geometry: Mathematical Foundations and Applications. The Mathematical Gazette, 74(469):316, 1990.
  21. [21] Benoit B. Mandelbrot. The fractal geometry of nature. Freeman and Company, New York, 1982.
  22. [22] Takayuki Hirata and Masajiro Imoto. Multifractal analysis of spatial distribution of microearthquakes in the Kanto region. Geophysical Journal International, 107(1):155–162, 1991.
  23. [23] G. Molchan and T. Kronrod. The fractal description of seismicity. Geophysical Journal International, 179(3):1787–1799, dec 2009.
  24. [24] Subhadra Nampally, Simanchal Padhy, and Vijay P. Dimri. Characterizing spatial heterogeneity based on the b-value and fractal analyses of the 2015 Nepal earthquake sequence. Tectonophysics, 722:154–162, jan 2018.
  25. [25] V. De Rubeis, P. Dimitriu, E. Papadimitriou, and P. Tosi. Recurrent patterns in the spatial behaviour of Italian seismicity revealed by the fractal approach. Geophysical Research Letters, 20(18):1911–1914, 1993.
  26. [26] Umar Hayat, A. Barkat, A. Ali, Khaista Rehman, Shazia Sifat, and T. Iqbal. Fractal analysis of shallow and intermediate-depth seismicity of Hindu Kush. Chaos, Solitons and Fractals, 128:71–82, nov 2019.
  27. [27] HP Xie. Introduction to fractal rock mechanics. Technical report, 1996.
  28. [28] Xian Zhen Wu, Xiang Xin Liu, Zheng Zhao Liang, Xun You, and Min Yu. Experimental study of fractal dimension of AE serials of different rocks under uniaxial compression. Yantu Lixue/Rock and Soil Mechanics, 33(12):3561–3569, 2012.
  29. [29] Xin Qiu, Jingxian Xu, Shanglin Xiao, and Qing Yang. Acoustic emission parameters and waveforms characteristics of fracture failure process of asphalt mixtures. Construction and Building Materials, 215:135–147, 2019.
  30. [30] Ruixiong Xue, Zhengzhao Liang, Nuwen Xu, and Linlu Dong. Rockburst prediction and stability analysis of the access tunnel in the main powerhouse of a hydropower station based on microseismic monitoring. International Journal of Rock Mechanics and Mining Sciences, 126:1365–1609, 2020.
  31. [31] Dexing Li, Enyuan Wang, Xiangguo Kong, Muhammad Ali, and Dongming Wang. Mechanical behaviors and acoustic emission fractal characteristics of coal specimens with a pre-existing flaw of various inclinations under uniaxial compression. International Journal of Rock Mechanics and Mining Sciences, 116:38–51, 2019.
  32. [32] Shumin Liu, Xuelong Li, Zhonghui Li, Peng Chen, Xuelin Yang, and Yongjie Liu. Energy distribution and fractal characterization of acoustic emission (AE) during coal deformation and fracturing. Measurement: Journal of the International Measurement Confederation, 136:122–131, mar 2019.
  33. [33] Xia Ting Feng, Yang Yu, Guang Liang Feng, Ya Xun Xiao, Bing rui Chen, and Quan Jiang. Fractal behaviour of the microseismic energy associated with immediate rockbursts in deep, hard rock tunnels. Tunnelling and Underground Space Technology, 51:98–107, jan 2016.
  34. [34] H Zhu and CC Ji. Theory of Fractal and its Applications. Technical report, 2010.
  35. [35] Andrew M. Fraser and Harry L. Swinney. Independent coordinates for strange attractors from mutual information. Physical Review A, 33(2):1134–1140, 1986.
  36. [36] Peter Grassberger and Itamar Procaccia. Characterization of strange attractors. Physical Review Letters, 50(5):346–349, 1983.
  37. [37] A. M. Albano, J. Muench, C. Schwartz, A. I. Mees, and P. E. Rapp. Singular-value decomposition and the Grassberger-Procaccia algorithm. Physical Review A, 38(6):3017–3026, 1988.
  38. [38] Jie Huang and Donald L. Turcotte. Are earthquakes an example of deterministic chaos? Geophysical Research Letters, 17(3):223–226, 1990.
  39. [39] D Kiyashchenko, N Smirnova, V. Troyan, E. Saenger, and F. Vallianatos. Seismic hazard precursory evolution: Fractal and multifractal aspects. Physics and Chemistry of the Earth, 29(4-9):367–378, 2004.
  40. [40] Xinglin Lei, Osamu Nishizawa, and Kinichiro Kusunose. Band-limited heterogeneous fractal structure of earthquakes and acoustic-emission events. Geophysical Journal International, 115(1):79–84, oct 1993.
  41. [41] Denisse Pastén, Rodrigo Estay, Diana Comte, and Javier Vallejos. Multifractal analysis in mining microseismicity and its application to seismic hazard in mine. International Journal of Rock Mechanics and Mining Sciences, 78:74–78, sep 2015.
  42. [42] Xiangguo Kong, Enyuan Wang, Shaobin Hu, Rongxi Shen, Xuelong Li, and Tangqi Zhan. Fractal characteristics and acoustic emission of coal containing methane in triaxial compression failure. Journal of Applied Geophysics, 124:139–147, jan 2016.
  43. [43] H. Xie and W. G. Pariseau. Fractal character and mechanism of rock bursts. International Journal of Rock Mechanics and Mining Sciences and, 30(4):343–350, aug 1993.
