Self-sensing of Portland Limestone cement pastes without functional fillers

Mohammad Al-Qaralleh

doi:10.6180/jase.202608_31.057

Self-sensing of Portland Limestone cement pastes without functional fillers

Civil Engineering

MohammadAl-Qaralleh^1,2This email address is being protected from spambots. You need JavaScript enabled to view it.

¹Civil Engineering Department, University of Tabuk, Tabuk, SA

²Civil and Environmental Engineering Department, Mutah University, Karak, Jordan

Received: December 9, 2025
Accepted: February 9, 2026
Publication Date: March 14, 2026

Copyright The Author(s). This is an open access article distributed under the terms of the Creative Commons Attribution License (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are cited.

Download Citation: ||https://doi.org/10.6180/jase.202608_31.057

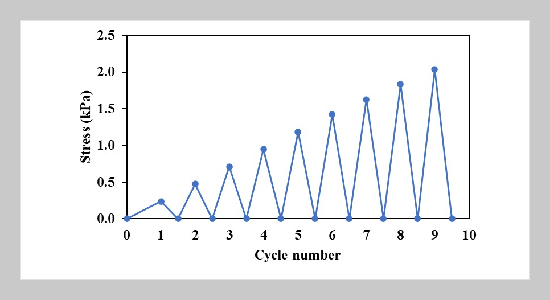

Portland Limestone Cement (PLC) has been recently widely accepted in the construction industry as a replacement to the Ordinary Portland Cement (OPC). PLC was found to exhibit comparable mechanical strength to the OPC, and its production reduces the emissions of greenhouse gasses. However, the intrinsic self-sensing capability of PLC pastes without conductive fillers remains poorly understood. Self-sensing is the correlation between mechanical loading and changes in intrinsic electrical properties of the cement paste. This work investigates the piezopermittivity and piezoresistivity of the PLC paste and compares it with OPC paste. For this study, 3 specimens of PLC paste were prepared by mixing water and cement with a ratio of 0.35 and with dimensions of 60×60×10 mm. The specimens were tested under low-level cyclically-increasing compressive stress. Surface-mounted aluminum electrodes connected to an LCR meter were employed to monitor the change in the capacitance and resistivity of the specimens. The results reveal that PLC paste exhibit moderate yet unstable electrical sensitivity to the mechanical loading. It also shows irreversible electrical evolution under cyclic loading which suggests an accumulative microstructural changes contrary to its OPC counterparts. Under 2 kPa of compressive stress, the PLC specimens show an average fractional change of-0.053%, and 0.23% for capacitance and resistance, respectively. These findings suggest that while PLC demonstrates sensitivity to low-level mechanical loading in the elastic range. However, its long-term self-sensing stability may be limited due to the accumulation of the microstructural changes.

Keywords: Structural health monitoring; Damage detection; Capacitance-based sensing; Piezopermittivity.

[1] A. Moradhassel and B. Masterson. “Advancing the cement industry’s climate change plan in British Columbia: Addressing economic and policy barriers”. In: TAnnual Conference of the Transportation As sociation of Canada: Economic Implications of Climate Change. 2009. URL: https: //conf.tac-atc.ca/english/resourcecentre/readingroom/conference/conf2009/pdf/moradhassel.pdf.
[2] K. Githachuri and M. G. Alexander, (2013) “Durability performance potential and strength of blended Portland limestone cement concrete" Cement and Concrete Composites 39: 115–121. DOI: 10.1016/j.cemconcomp.2013.03.027.
[3] B. Lindita and M. Jamie. An Environmental Life Cycle Assessment of Portland-Limestone and Ordinary Portland Cements in Concrete. Tech. rep. Cement Association of Canada, 2014. URL: https: //www.athenasmi.org/wp-content/uploads/2014/01/CAC_PLCvsOPC_Final_Technical_Brief.pdf.
[4] M. Thomas, K. Kazanis, K. Cail, A. Delagrave, and B. Blair. “Lowering the Carbon Footprint of Concrete by Reducing Clinker”. In: Annual Conference of the Transportation Association of Canada Halifax, Nova Scotia: Lowering the Carbon Footprint of Concrete. Halifax, Nove Scotia, 2010. DOI: 10.3141/2290-13.
[5] M. D. Thomas and R. D. Hooton. The Durability of Concrete Produced with PLC-Canadian Studies. Tech. rep. Portland Cement Association, 2010. URL: https: //www.fcpa.org/wp-content/uploads/The_Durability_of_Concrete_Produced_with_PLCCanada.pdf.
[6] T. J. Barrett, H. Sun, T. Nantung, and W. J. Weiss, (2014) “Performance of Portland Limestone Cements" Transportation Research Record: Journal of the Transportation Research Board 2441(1): 112–120. DOI: 10.3141/2441-15. URL: https: //journals.sagepub.com/doi/10.3141/2441-15.
[7] R. D. Hooton, A. Ramezanianpour, and U. Schutz. Decreasing the Clinker Component Materials: Performance of Portland-Limestone Cements in Concrete in combination with Supplementary Cementing Materi als. 2010. URL: https: //www.nrmca.org/ctf/2010cscproceedings/documents/Hooton%20Paper%204-14-10.pdf.
[8] B. Bucher. “Shrinkage and Cracking and its Relation to Cement Composition". (phdthesis). Purdue University, West Lafayette, IN, 2009. URL: https: //docs.lib.purdue.edu/dissertations/AAI1476093/.
[9] S. Das, M. Aguayo, G. Sant, B. Mobasher, and N. Nei thalath, (2015) “Fracture process zone and tensile behavior of blended binders containing limestone powder" Ce mentandConcreteResearch73:51–62. DOI:10.1016/ j.cemconres.2015.03.002.
[10] I. Ahmad, D. Shen, K. A. Khan, A. Jan, M. Khubaib, T. Ahmad, and H. Nasir, (2022) “Effectiveness of Lime stone Powder in Controlling the Shrinkage Behavior of Cement Based System: a Review" Silicon 14(2): 359–371. DOI: 10.1007/s12633-020-00897-1.
[11] S. Y. Hiew, K. B. Teoh, H. S. Wong, N. Banthia, and D.-Y. Yoo, (2026) “Recent advances in low-carbon ultra high-performance concrete: materials, mechanisms, and sustainability perspectives "npj Materials Sustainabil ity (1): 3. DOI: 10.1038/s44296-025-00093-5.
[12] M. A. Al-Qaralleh and D. Chung, (2025) “Inductance and piezoinductance of steel wire rope, with relevance to inductance-based structural self-sensing of stress" Construction and Building Materials 489: 140599. DOI: 10.1016/j.conbuildmat.2025.140599.
[13] M.Al-Qaralleh,(2023) “Effect of Water Cement Ratio on the Electrical Conductivity and Piezoelectricity of Cement Paste Cured While Applying Direct Current" Mutah for resesrch and studies: natural and applied sciences 38(1): URL: https: //ejournal.mutah.edu.jo/index.php/NASS/article/view/2292.
[14] M. Al-Qaralleh, (2022) “Self-Sensing Capabilities of Cement Pastes Treated by Direct Current Curing Technique" Materials Science Forum 1060: 201–205. DOI: 10.4028/p-vvo5zv. URL: https: //www.scientific.net/MSF.1060.201.
[15] M. K. Kim, M. A. Al-Qaralleh, and D. D. L. Chung, (2024) “Strong piezoresistivity and piezopermittivity of cement-based material without functional admixture and their correlation" Cement and Concrete Composites 151: 105587. DOI: https: //doi.org/10.1016/j.cemconcomp.2024.105587 . URL: https: //www.sciencedirect.com/science/article/pii/S0958946524001598.
[16] M.Al-Qaralleh, (2022) “Piezoelectric behavior of polarized fresh cement pastes under the effect of different direct current voltages" Results in Engineering 14(March): 100430. DOI: 10.1016/j.rineng.2022.100430. URL: https://doi.org/10.1016/j.rineng.2022.100430.
[17] A. J. Al-Bayati, K. Butrouna, S. Robert, B. Salman, and M. Al-Qaralleh. Utilizing Graphite Powder to Improve Concrete Conductivity, Compressive Strength, and Work ability. 2021. DOI: doi:10.1061/9780784482889.093. URL: https: //doi.org/10.1061/9780784482889.093.
[18] Z. Deng, Q. D. Nguyen, A. H. Mahmood, W. Li, and D. Sheng, (2026) “Thermochromic coatings for self sensing seawater-mixed cementitious sensors: towards multifunctional applications in concrete pavements" Cement and Concrete Composites 168: 106488. DOI: https: //doi.org/10.1016/j.cemconcomp.2026.106488. URL: https: //www.sciencedirect.com/science/article/pii/S0958946526000284.
[19] Y. Yang and C. Wu,(2023) “Study on the conductivity of graphite modified asphalt concrete for snow melting and deicing based on modified self-consistent model" Journal of Applied Science and Engineering 27(8): 3071 3080. DOI: 10.6180/jase.202408_27(8).0014. URL: https: //doi.org/10.6180/jase.202408_27(8).0014.
[20] ASTMC305–06, (2009) “Standard Practice for Mechanical Mixing of Hydraulic Cement Pastes and Mortars of Plastic Consistency" ASTM International 04: 3. arXiv: arXiv:1011.1669v3. URL: https: //www.astm.org/Standards/C305.
[21] ASTM C595-03, (2003) “Standard Specification for Blended Hydraulic Cements" Annual Book of Ameri can Society for Testing materiasl ASTM Standards 14: 1–7. DOI: 10.1520/C0595.
[22] D. D.ChungandY.Wang,(2018) “Capacitance-based stress self-sensing in cement paste without requiring any admixture" Cement and Concrete Composites 94(June): 255–263. DOI: 10.1016/j.cemconcomp.2018.09.017. URL: https: //doi.org/10.1016/j.cemconcomp.2018.09.017.
[23] Y. Wang and D. D. L. Chung, (2017) “Effect of the fringing electric field on the apparent electric permit tivity of cement-based materials" Composites Part B: Engineering 126: 192–201. DOI: https: //doi.org/10.1016/j.compositesb.2017.05.080. URL: https: //www.sciencedirect.com/science/article/pii/S1359836817300975.
[24] D. Bentz and M. Peltz, (2008) “Reducing Thermal and Autogenous Shrinkage Contributions to Early-Age Cracking" ACI Materials Journal 105(4): 414–420. URL: https: //tsapps.nist.gov/publication/get_pdf.cfm?pub_id=923433.
[25] M. Sun, Z. Li, and X. Song, (2004) “Piezoelectric effect of hardened cement paste" Cement and Concrete Composites 26(6): 717–720. DOI: 10.1016/S0958-9465(03)00104-5.
[26] S. W. Tang, X. H. Cai, Z. He, W. Zhou, H. Y. Shao, Z. J. Li, T. Wu, and E. Chen, (2017) “The review of early hydration of cement-based materials by electrical methods" Construction and Building Materials 146: 15–29. DOI: https: //doi.org/10.1016/j.conbuildmat.2017.04.073. URL: https: //www.sciencedirect.com/science/article/pii/S0950061817307262.
[27] M.Al-Qaralleh, (2023) “Electromechanical properties of self-sensing cement pastes polarized while fresh" Journal of Applied Engineering Science 21(2): 326–335. DOI: 10.5937/jaes0-40435. URL: https: //scindeks.ceon.rs/Article.aspx?artid=1451-41172301326A.
[28] J. Garcia, N. Tiburzi, K. Folliard, and T. Drimalas, (2022) “Mechanical properties and electrical resistivity of portl and limestone cement concrete systems containing greater than 15% limestone and supplementary cementitious materials" Cement 8(Jun): 100026. DOI: 10.1016/j.cement.2022.100026.
